The braking system combines magnetic brake and regenerative break,greatly prolongs the using lift of friction plate.
With emergency stop switch and electricity lock button,and multi-valve controlling levers,ergonomic for operation.

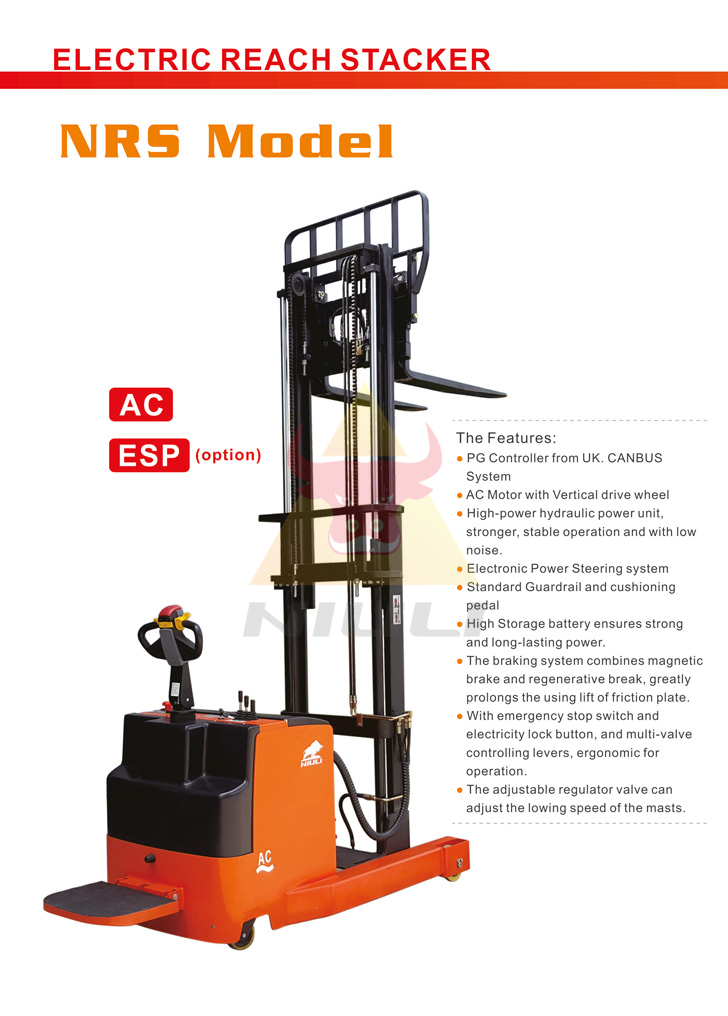

NRS Electric reach stacker
Product Name:NRS Electric reach stacker
Product Detail

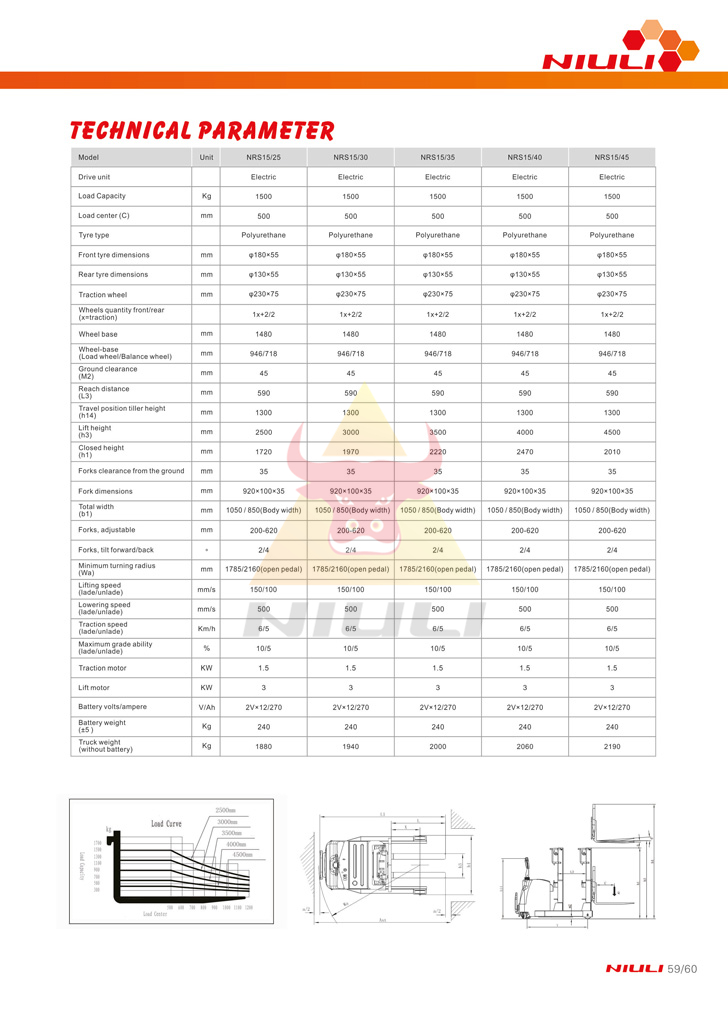

| Model | NRS15-25 | NRS15-30 | NRS15-35 | NRS15-40 | NRS15-55 |
| Drive unit | Electric | Electric | Electric | Electric | Electric |
| Load capacity(kg) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Load center(mm) | 500 | 500 | 500 | 500 | 500 |
| Tyre type | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Braking mode | Regenerative braking and electro magnetic brake | ||||
| Front tyre dimensions(mm) | φ180×55 | φ180×55 | φ180×55 | φ180×55 | φ180×55 |
| Rear tyre dimensions(mm) | φ130×55 | φ130×55 | φ130×55 | φ130×55 | φ130×55 |
| Taction wheel(mm) | φ230×75 | φ230×75 | φ230×75 | φ230×75 | φ230×75 |
| Wheels quantity front/rear(x=traction) | 1x/2 | 1x/2 | 1x/2 | 1x/2 | 1x/2 |
| front overhang(mm) | 460 | 460 | 460 | 460 | 460 |
| Wheel base(mm) | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheel-base(Load wheel/Balance wheel)(mm) | 946/718 | 946/718 | 946/718 | 946/718 | 946/718 |
| Ground clearance(mm) | 45 | 45 | 45 | 45 | 45 |
| Reach distance(mm) | 590 | 590 | 590 | 590 | 590 |
| Travel position tiller height(mm) | 1300 | 1300 | 1300 | 1300 | 1300 |
| Lift height(mm) | 2500 | 3000 | 3500 | 4000 | 5500 |
| Closed height(mm) | 1720 | 1970 | 2220 | 2470 | 2400 |
| Forks clearance from the groud(mm) | 35 | 35 | 35 | 35 | 35 |
| Fork dimensions(mm) | 920×100×35 | 920×100×35 | 920×100×35 | 920×100×35 | 920×100×35 |
| Total length(mm) | 2230 | 2230 | 2230 | 2230 | 2245 |
| Total width(mm) | 1050/850 | 1050/850 | 1050/850 | 1050/850 | 1050/850 |
| Forks,adjustable(mm) | 200-620 | 200-620 | 200-620 | 200-620 | 200-620 |
| Forks,tilt forward/back(°) | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 |
| MInimum turning radius(mm) | 1785 | 1785 | 1785 | 1785 | 1785 |
| MInimum turning radius(open pedal)(mm) | 2160 | 2160 | 2160 | 2160 | 2160 |
| Lifting speed(lade/unlade)(mm/s) | 150/100 | 150/100 | 150/100 | 150/100 | 150/100 |
| Lowering speed(lade/unlade)(mm/s) | <500 | <500 | <500 | <500 | <500 |
| Traction speed(lade/unlade)(Km/s) | 6/5 | 6/5 | 6/5 | 6/5 | 6/5 |
| Maximum grade ability(lade/unlade)(%) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
| Truck weigth(without battery)(kg) | 1880 | 1940 | 2000 | 2060 | 2250 |
| battery weight(±5%)(kg) | 240 | 240 | 240 | 240 | 240 |
| Walking motor control system | exchange | exchange | exchange | exchange | exchange |
| Traction motor(KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Lift motor(KW) | 3 | 3 | 3 | 3 | 3 |
| Battery volts/ampere(V/AH) | 2V×12/270 | 2V×12/270 | 2V×12/270 | 2V×12/270 | 2V×12/270 |
| Battery charger | input 220V/50(60)HZ，output 24V/40A | ||||
